Its modular, scalable design ensures high availability and continuous service, while dynamic power distribution maximizes energy usage and charging speed. Ideal for public stations, it supports quick drive-through charging in 5 to 30 minutes.
With a peak efficiency of 97% and up to 500A per single connector, the Titan V4 offers dynamic power distribution for optimal performance.

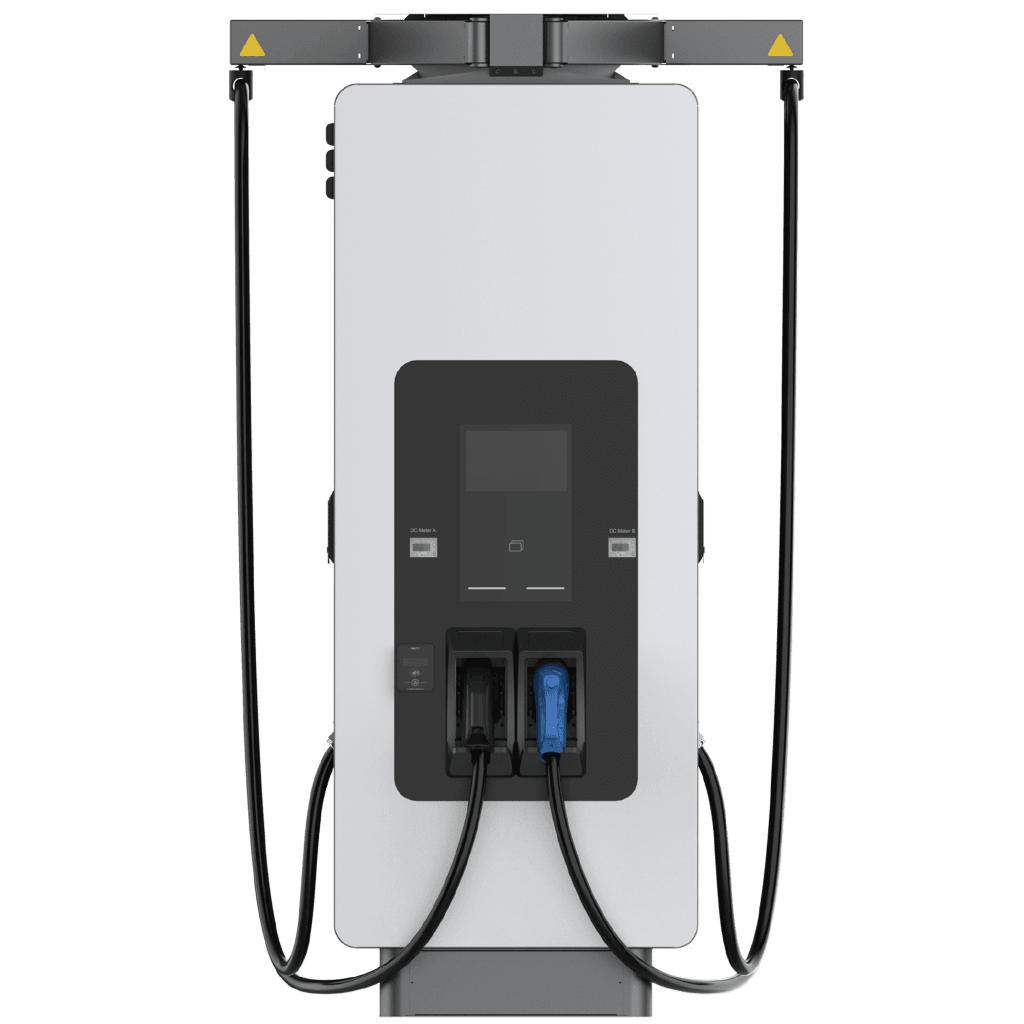

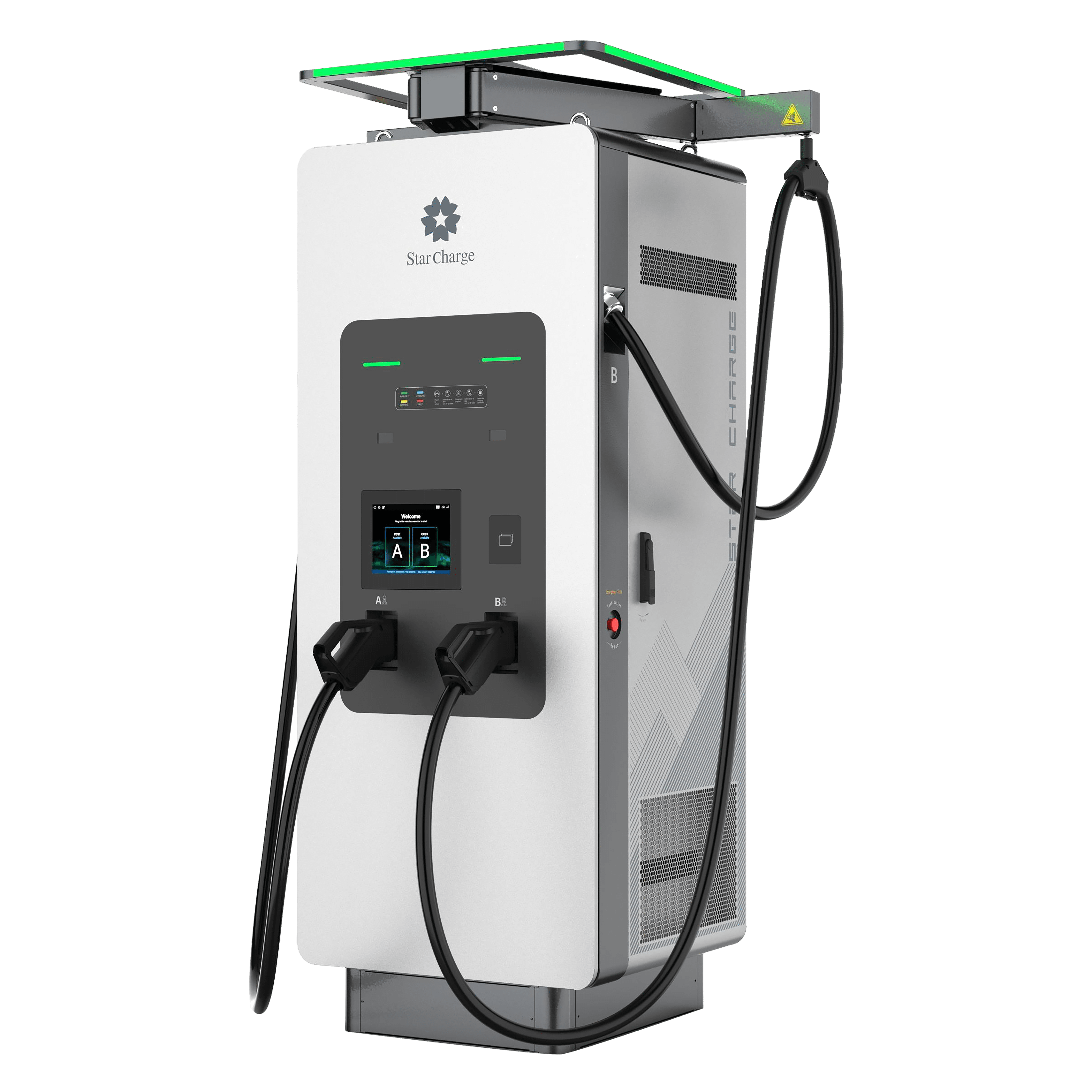

Featuring an ergonomically designed cable management system, this solution reduces operating force while extending the operating range. It includes a large screen with an intuitive user interface for easy interaction, and overhead indicators to display charging availability and status.
Fully customizable to CPO’s branding, user interface, power distribution logic, and bespoke software & app development.
The Smart OMC Maintenance platform enables faster diagnostics, reducing maintenance costs through efficient single-person operation. Its modular power module design further enhances uptime availability, ensuring reliable and uninterrupted performance.
Power Output:
120 – 320 kW
Compatibility:
CCS2+CCS2 or CCS2+CHAdeMO
Charging Mode:
Support simultaneous charging for all connectors
Display:
10.4-inch touch screen
Dimensions (WxHxD):
800mm x 2050mm x 750mm
Button and Switch:
Emergency button
Weight:
410 kg
Cable Length:
5m or 6m
Installation:
Ground mounting
