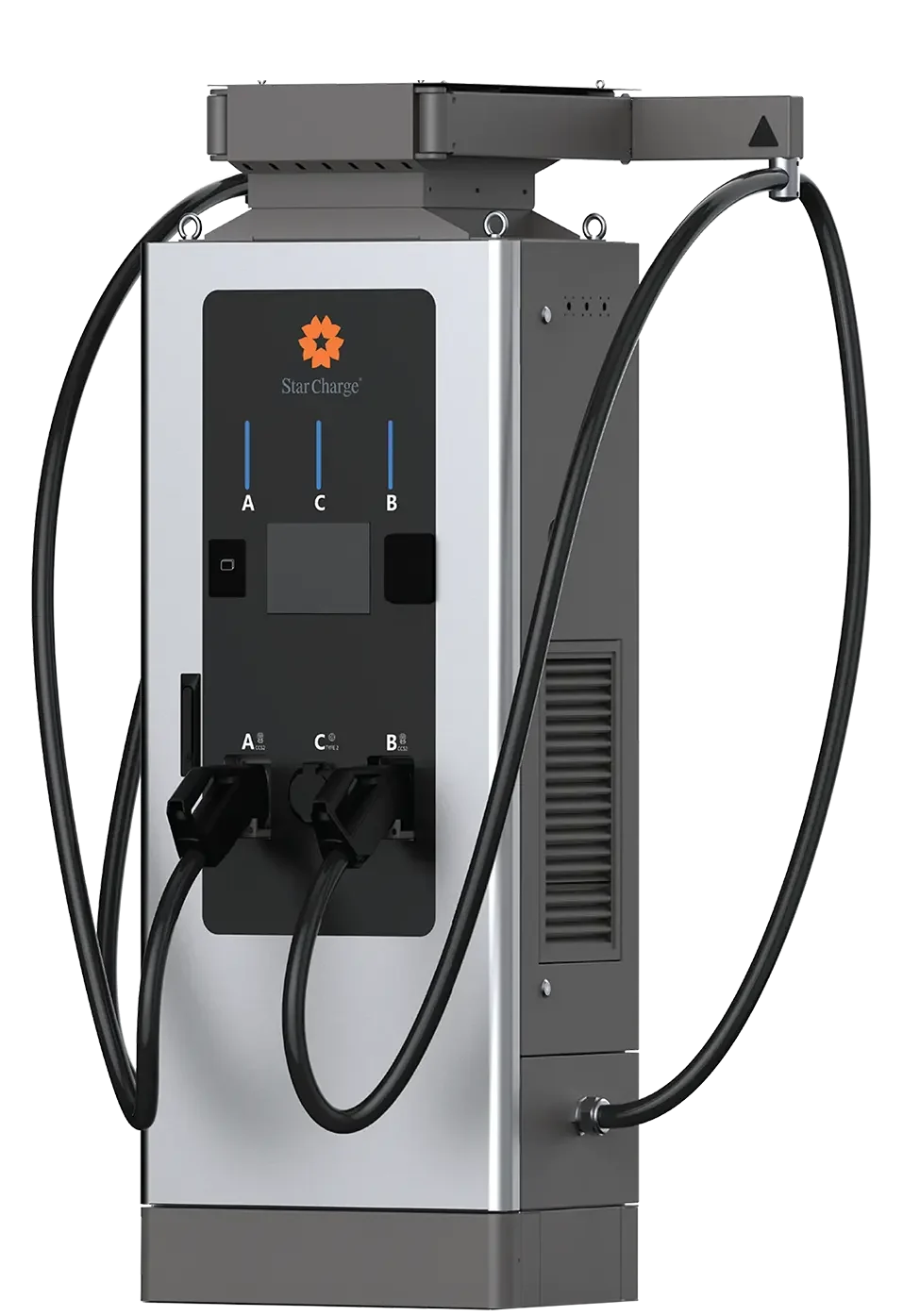

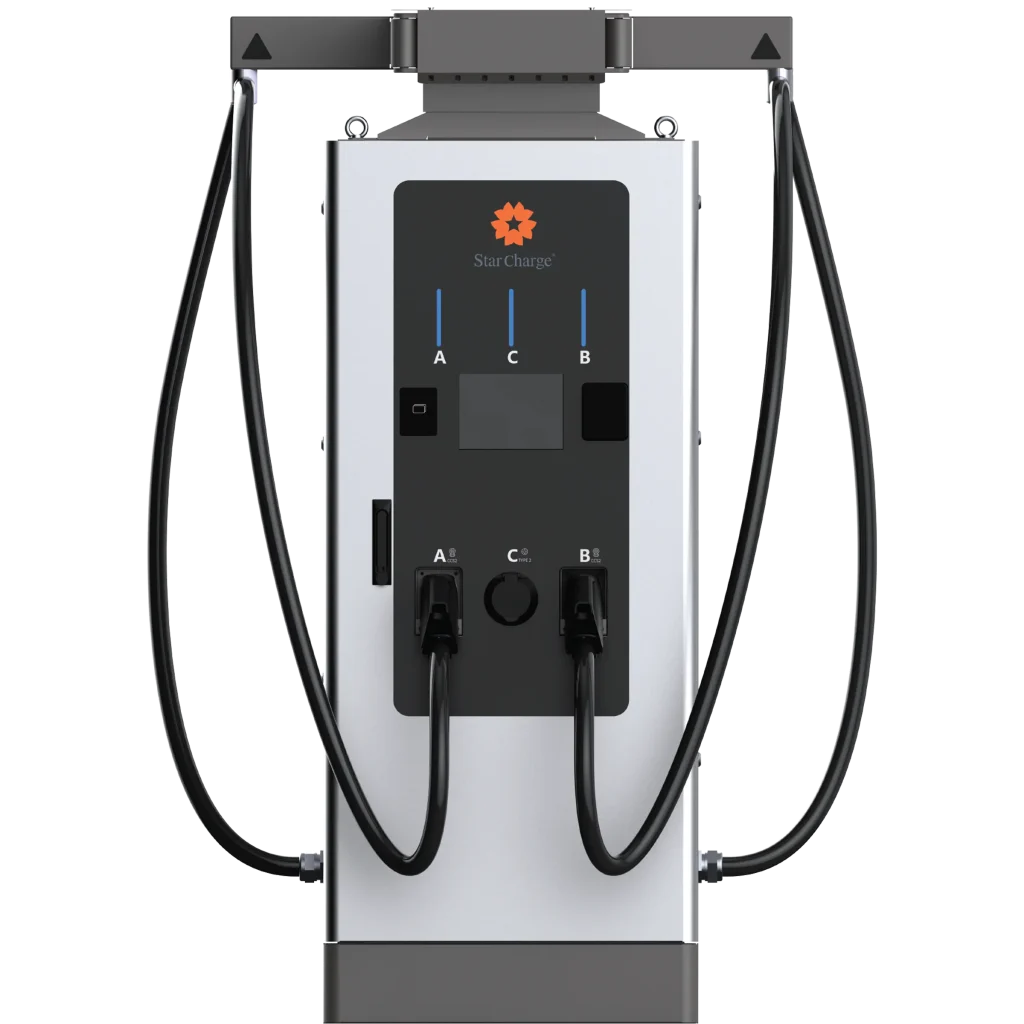

Jupiter is a versatile 3-in-1 charging solution with 95% efficiency, featuring two fast DC connectors (up to 60 kW) and a 22 kW AC socket for slower charging. Ideal for destination charging, it’s compatible with 99% of EVs, offering flexible options for various charging needs.
Multiple configurations are available to meet diverse charging needs.
Features an advanced cable management system, payment terminal, 7-inch touchscreen, and plug-and-charge capability for an organized, smooth, and convenient charging experience.
Built with IP55 dust and water protection and IK10 impact resistance, designed to withstand extreme conditions from -30°C to 50°C.
Fully supports the OCPP 1.6J protocol, allowing seamless integration with both StarCharge and third-party charging management systems.
Power Output:
DC 60kW max + AC 22kW max
Compatibility:
Config. 01: 2 x CCS2 + Type2 Socket
Config. 02: CCS2 + CHAdeMO + Type2 Socket
Config. 03: CCS2 + CCS2
Charging Mode:
Support simultaneous charging for all connectors
Display:
7-inch touch screen
Dimensions (WxHxD):
1894mm x 1050mm x 710mm
Button and Switch:
Emergency button
Weight:
200 kg
Cable Length:
5m
Installation:
Ground mounting
